Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Jiashan Dingyi Interaction bearing,Hunan Jintai Hardware & Machinery
  • Model Number: DYB300 SJ JF BIMETAL BUSH
  • Type: Sleeve
  • Material: Bronze,Steel, carbon seel,ptfe teflon,stbronze alloy, Aluminum alloy bushes,bushings
  • Material compostion: Steel+Bronze alloy SJ JF Bimetal Bushes con-rod of automobile engines
  • Finishing: Straight sets Sleeve/Flange Plain/Thrust pads/Skateboard/customized
  • Inner layer: CuPb10Sn10,CuSn4pb24,CnPb30,CuPb24Sn,AlSn20Cu
  • Oil groove shape: normally used or according to your requirement
  • feature: high fatigue strength,load capacity,impact,good corrosion resistance
  • apply: wrapped bushes,thrust washer,bush connecting rod level of gas engine
  • applies: transmission gearbox,engineering agriculture machinery
  • types: for bushings grooves & indentations and clinch lock split
  • other: normal metric flange bushing/Gear pump side plates tolerance H7

Packaging & Delivery

Packaging Details Anti-rust oil+Plastic films+Plastic bag+Carton+Pallet
Delivery Time Usually, within 15-20 days, depends on your quantity

 Professional Manufacture for Bearings

                    SJ/JF DYB300 Series Bushings



Product Description

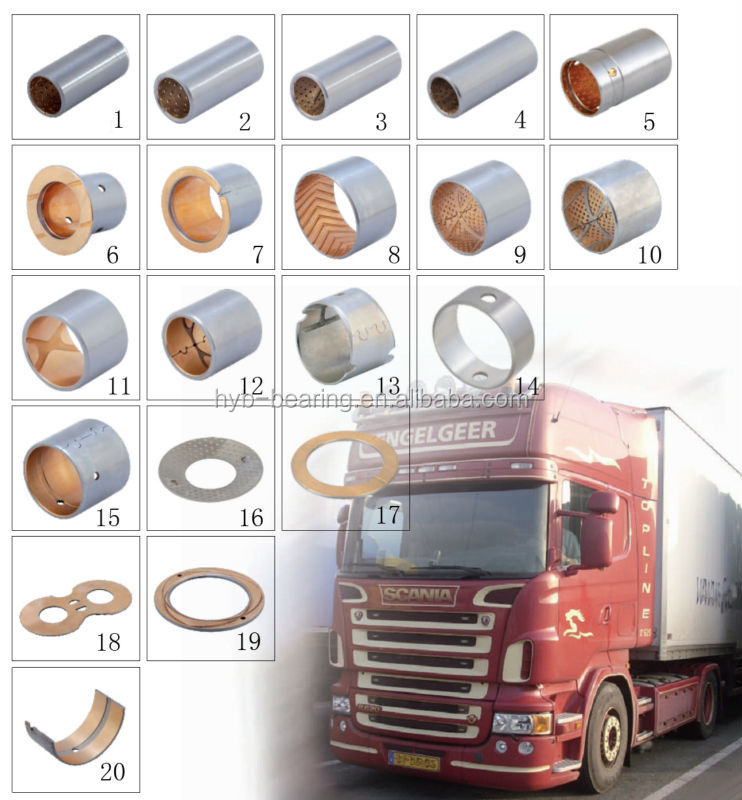

Bushing Models:





TECHNICS DESIGN



JF bimetal bearings are widely used in oil lubricating situations. Normally under low speed and oil lubricating situations assemble with grease and work with adding oil periodically, such as suspension, steeping ball joints, brake pedal joints, redirector, connecting rod, slide part punch, etc.



APPLICATION FEATURES



The bearings surface are sintered with CuPbSn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb3 or AlSn20Cu. The chemical changes of inner alloy layer can make the bearings work well under various load presses, different working temperatures and sliding speeds.



PHYSICAL CHARACTERSTICS OF JF MATERIAL



Performance

Data

Load capacity P

Static load

150N/mm2

Max line speed V

Dry friction

0.4m/s

Oil lubrication

5m/s

PV value limit

Dry friction

2.2 N/mm2.m/s

Oil lubrication

10 N/mm2.m/s

Friction coef u

Dry friction

<2.2

Oil lubrication

<0.08

Alloy Hardness

HB30-100

Alloy material

CuPb10Sn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb,etc







Oil Grooves:

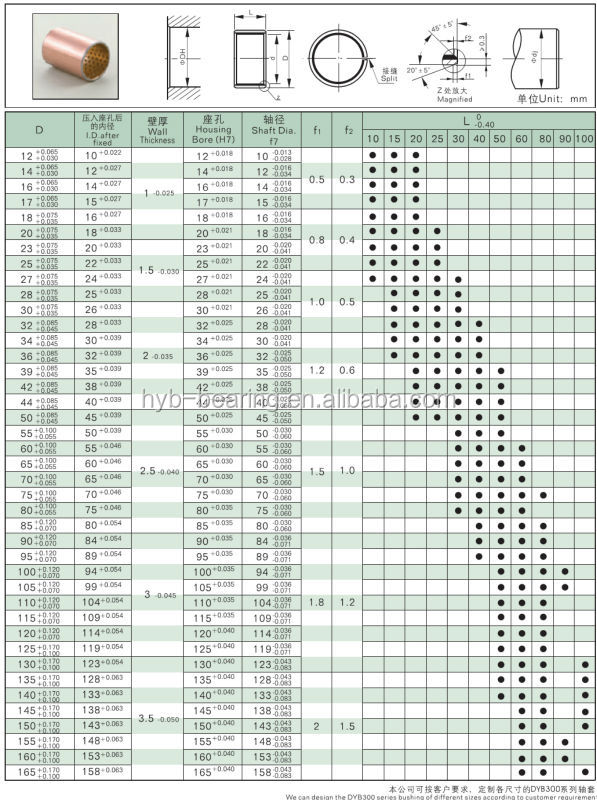

 Sleeve Bush Dimensions:

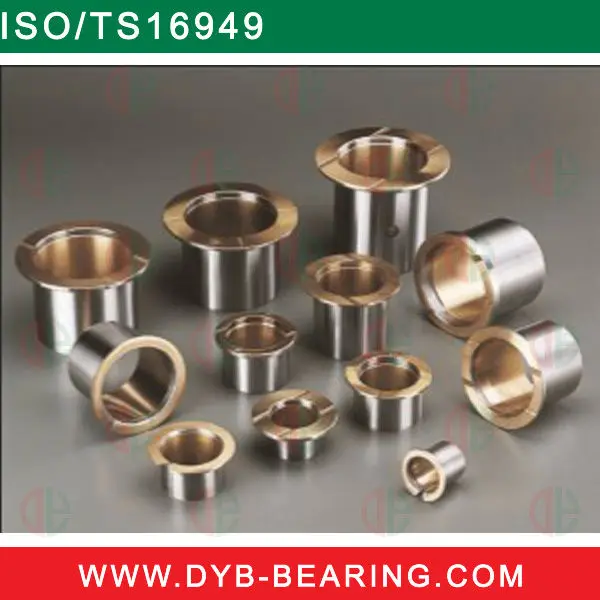

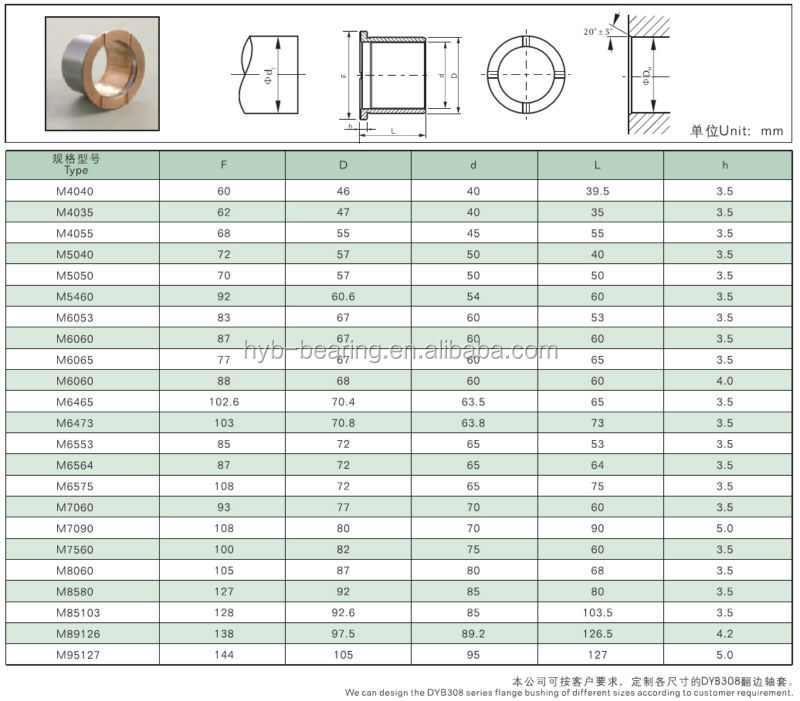

Flanged Bush Dimensions:





Application Fields:

1,Widely used in hydraulic vechicles,tobacoo machines,forests machines and so on.

2,Widely used in vehicle chassis,forming machine tools,rolling steel industry and so on.

3,Widely used in food machine,pharmaceutical machine,ect.

4,Widely used in consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,ect.







Packaging & Shipping



Packing:

1,Print mark logo,

2,Anti-rust oil

3,Plastic films

4,Plastic bag or paper box

5,Carton+Pallet





 Shipping:

1,Delivery Time : Usually 15-20 days.Depends on your quantity.

2,Generally, Free of standard size sample within 5 days.





Our Services



1,We are produce high quality and low price good wear resistance sliding bush factory

2,Our sliding bush passed the ISO TS 16949 .

3,Under the guidance of Pursuit of the excellence & keep improving.

4,We will do our best to provide the quality products and professional sevices.



Company Information



Jiashan Dingyi Interaction Bearing Co., Ltd. specializes in researching and manufacturing self-lubricating oilless bushes. We can also design and produce various non-standard bearings according to clients' requirements. Qualified products and good service are guidance of our company. We will do our best to develop bushes in different fields to serve clients from at home and abroad.

Comapany R&D Center:



Automatic chamfer machine:





Inspection and Quality Control:









FAQ



Q:What is slide bearing?

A:sliding bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow





Q:Where is your factory located?

A:Our factory is located in NO.16,lizheng road,Develop Zone, jiashan,zhejiang, P.R.China





Q: Could I get samples?

A:We are honored to offer you samples.





Q:How  does your factory do  regarding quality control?

A:Quality is priority .we always attach great importance to quality controlling from start to the end.our factory has gained  ISO/TS16949







Q:Why choose slide bearing?

  • Maintenance-free operation
  • No lubrication required (PTFE composite)
  • Initial lubrication required (POM composite)
  • Minimum wall thickness, minimum space requirements
  • Accommodation of heavy loads
  • Wide range of temperatures
